845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

Productdetails:
Plaats van herkomst: CHINA
Merknaam: NKH MACHINERY
Certificering: CE/SONCAP/CSA
Modelnummer: YX41-211-845
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: Onderhandelbaar
Verpakking Details: NAAKTE LADINGEN VOOR BROODJE VROEGER MET SNIJDER IN 40FT CONTAINER, HOUTEN DOOS VOOR PLC CONTROLEkab
Levertijd: 90 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T
Levering vermogen: 5 eenheden/Maand
Contact nu

Gedetailleerde informatie
Naam: Metaaltegel die Machine vormen Grondstoffen: Voorgelakte spoelplaten
Gewicht van de spoel: 10 Ton of zoals per verzoek Materiaal van de rol: 45# staal
Schachtdiameter: 75 mm Controlesysteem: PLC-besturingssysteem
Scherp bladmateriaal: Cr12, thermische behandeling

Productomschrijving

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

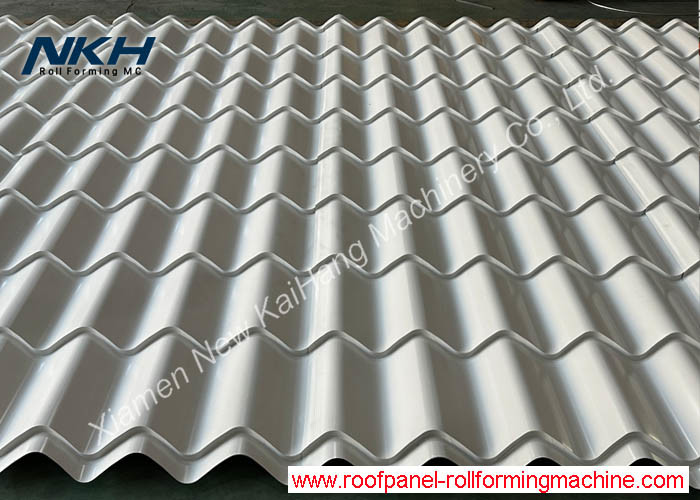

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

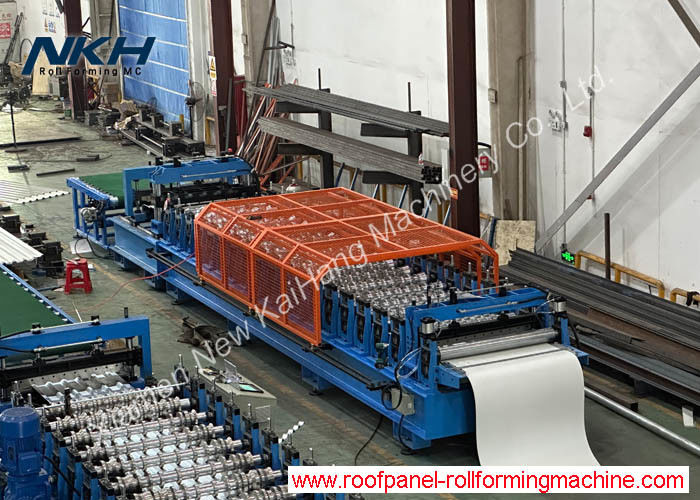

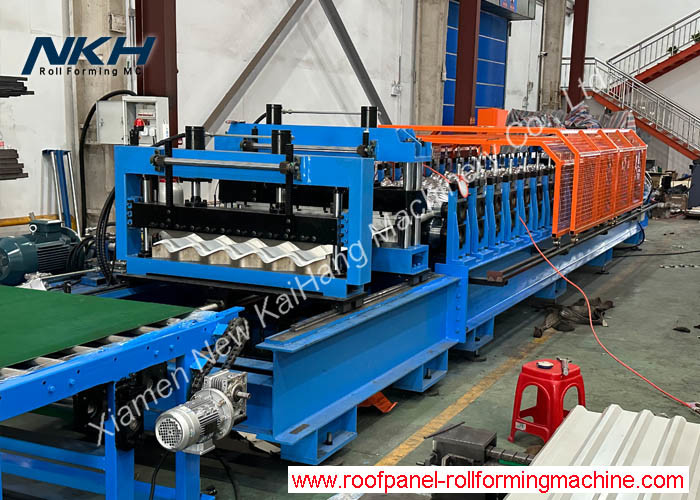

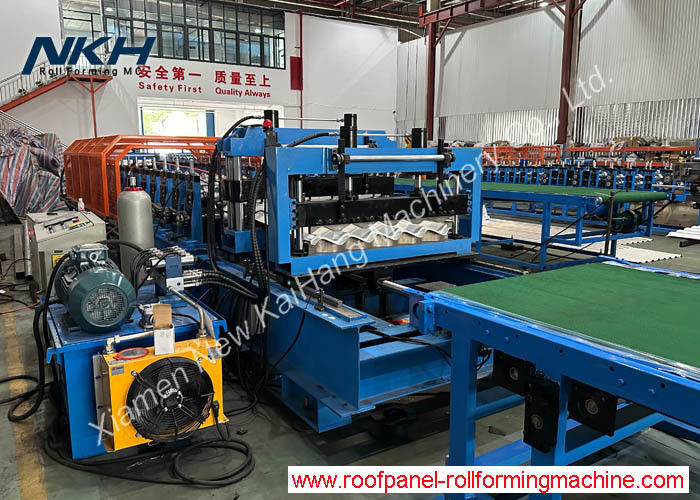

Drawings/Pictures of Complete Line:

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3













label:

glazed tile roll forming machine

roof sheet rolling machine

roof tile making machine
